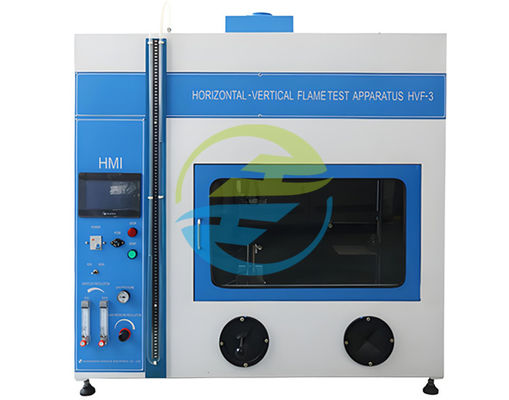

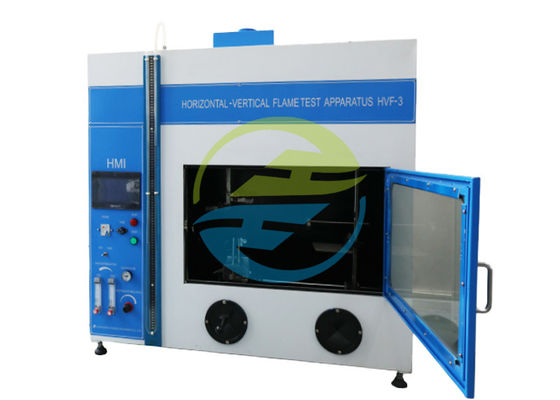

Horizontal And Vertical Burning Test Methods Flammability Testing Equipment with 0.1MPa Gas Pressure

Product Description:

Introducing our top-of-the-line Flammability Testing Equipment designed for testing the flammability of plastic and textile materials according to industry standard protocols such as IEC 60695, UL94, and ASTM D635. This state-of-the-art equipment is a must-have for industries where ensuring fire safety and compliance is paramount.

The Flammability Testing Equipment features a Copper Block with diameters of Ф5.5mm and Ф9mm, providing versatility in testing various materials. The Copper Block has a precise weight of 1.76 G±0.01 G and 10g±0.05 G, ensuring accurate and consistent testing results.

Equipped with Flame Power options of 50W and 500W, this testing equipment allows for a wide range of flammability tests to be conducted with precision and control. Whether you need to test materials under low or high heat conditions, this equipment has you covered.

The Flammability Testing Equipment includes a feature that enables burning times from 0 to 9999 times, which can be easily preset according to the specific testing requirements. This flexibility ensures that a variety of test scenarios can be accommodated, making this equipment suitable for a diverse range of applications.

Our Horizontal Flammability Tester is also known as a Horizontal Vertical Burning Tester, offering a comprehensive solution for conducting flammability tests on materials in accordance with industry standards. With its advanced capabilities and user-friendly design, this equipment streamlines the testing process and delivers reliable and accurate results.

Features:

• Product Name: Flammability Testing Equipment
• Burning time: 0-9999X0.1S, Can be preset
• Flame Power: 50W&500W
• Gas flow:
  • 50W: 105±5ml/min or 18±1mm
  • 500W: 965±30ml/min or 117±3 mm
• Gas Pressure: 0.1MPa
• Combustion Angle: 0°, 20°, 45°

Technical Parameters:

Applications:

When it comes to conducting flammability tests on plastic and textile materials, the HJ NF-2 Flammability Testing Equipment is the ideal solution. This versatile product is designed to meet the highest standards in flammability testing, making it suitable for a wide range of application occasions and scenarios.

The HJ NF-2 Flammability Testing Equipment is perfect for use in research laboratories, quality control departments, manufacturing facilities, and testing centers. Its precise and reliable performance makes it a valuable tool for ensuring the safety and quality of various materials.

Whether you need to perform flammability tests for regulatory compliance, product development, or quality assurance purposes, the HJ NF-2 Flammability Testing Equipment offers the perfect solution. With its advanced features and capabilities, this product is well-suited for a variety of testing scenarios.

With its certification option for a calibration certificate, customers can have added confidence in the accuracy and reliability of the test results. The HJ NF-2 Flammability Testing Equipment is manufactured in China, ensuring high-quality production standards and reliable performance.

Customers can order the HJ NF-2 Flammability Testing Equipment with a minimum order quantity of 1 set, and the price is negotiable to suit different budget requirements. Payment terms include T/T and L/C, providing flexibility for customers.

In terms of supply, the HJ NF-2 Flammability Testing Equipment offers a supply ability of 10 sets per month, with a delivery time of 30 days. The product is carefully packaged in plywood for secure transportation and storage.

The HJ NF-2 Flammability Testing Equipment features a copper block with Ф5.5mm/Ф9mm sizes, as well as precise gas flow rates for accurate testing: 50W - 105±5ml/min or 18±1mm, and 500W - 965±30ml/min or 117±3mm. The control operation mode includes PLC control, a 7-inch color touch screen interface, and an infrared remote control for ease of use.

Overall, the HJ NF-2 Flammability Testing Equipment is a reliable and efficient solution for conducting flammability tests on plastic and textile materials. Its product name reflects its compatibility with various international standards, such as IEC 60695, UL94, and ASTM D635. The product features, such as simulating actual fire sources, high-precision combustion timing system, adjustable flame height and angle, transparent observation window, and automatic timing function, make it a versatile choice for flammability testing applications.

Support and Services:

The Flammability Testing Equipment product comes with comprehensive Product Technical Support and Services to assist users in getting the most out of their equipment. Our team of experts is available to provide guidance on equipment operation, troubleshooting, maintenance, and calibration. Additionally, we offer training programs to ensure users understand how to use the equipment effectively and safely. Our goal is to help customers maximize the performance and longevity of their Flammability Testing Equipment through our dedicated technical support and services.

Packing and Shipping:

Product Packaging:

The Flammability Testing Equipment is carefully packaged in a sturdy cardboard box to ensure safe shipping. The equipment is securely cushioned with foam inserts to prevent any damage during transit.

Shipping:

Once your order is processed, the Flammability Testing Equipment will be shipped via a reliable carrier service. You will receive a tracking number to monitor the delivery status of your package. Please ensure someone is available to receive and sign for the delivery.

FAQ:

Q: What is the brand name of this Flammability Testing Equipment?

A: The brand name is HJ.

Q: What is the model number of this Flammability Testing Equipment?

A: The model number is NF-2.

Q: Where is this Flammability Testing Equipment manufactured?

A: This equipment is manufactured in China.

Q: What are the available payment terms for purchasing this Flammability Testing Equipment?

A: The available payment terms are T/T (Telegraphic Transfer) and L/C (Letter of Credit).

Q: What is the minimum order quantity for this Flammability Testing Equipment?

A: The minimum order quantity is 1 set.
