Double-Layer Explosion-Proof High and Low Temperature Environmental Test Chamber for Battery & Automotive Safety Testing

Double-Layer Explosion-Proof High and Low Temperature Environmental Test Chamber for Battery & Automotive Safety Testing

Nombre De La Marca: HeJin
Número De Modelo: HJ-EMTC-011
Cuota De Producción: 1 juego
Precio: Negotiatable
Condiciones De Pago: LC, T/T
Capacidad De Suministro: 10 juegos por mes
Información detallada
Lugar de origen:
Porcelana
Certificación:
Third party calibration certificate(cost additional)
Dimensiones de la cámara interior:
500x600x500mm
Dimensiones de la cámara exterior:
1430x1750x1160mm
Material de pared exterior:
Placa de acero de alta calidad de carbono
Material de pared interno:
Placa de acero inoxidable mate SUS304# de alta calidad
Condensador:
Condensador de carcasa y tubos (refrigerado por agua)
Ruido:
≤70db
Fuente de alimentación:
CA el 380V±10% 50Hz
Fuerza:
≤ 15 kW
Detalles de empaquetado:
Madera contrachapada
Resaltar:

double-layer explosion-proof test chamber

,

high low temperature test chamber for batteries

,

automotive safety testing environmental chamber

Descripción del producto

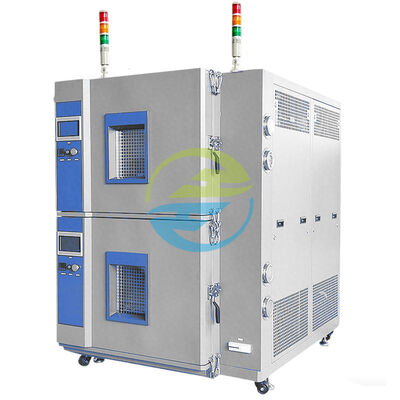

Double-Layer Explosion-Proof High and Low Temperature Environmental Test Chamber
Designed for high-risk thermal testing scenarios, the Double-Layer Explosion-Proof High and Low Temperature Test Chamber by HeJin delivers uncompromising safety, temperature accuracy, and long-term stability. Built with a reinforced double-layer explosion-proof structure, this environmental test chamber is engineered to protect both operators and laboratories while ensuring reliable thermal cycling tests for batteries, automotive components, and industrial materials.
Key Features & Advantages
  • Double-Layer Explosion-Proof Structure: Reinforced inner and outer chambers reduce risk during battery thermal runaway or pressure-related incidents
  • Wide Temperature Range Control: Stable performance in both high and low temperature environments, suitable for long-duration and cycling tests
  • High-Precision Temperature Uniformity: Advanced airflow design ensures even temperature distribution across the test space
  • Intelligent Control System: Touchscreen controller with programmable test profiles, data logging, and fault alarms
  • Multi-Level Safety Protection: Includes over-temperature protection, pressure relief design, emergency stop, and alarm system
International Reference Standards
  • IEC 60068-2-1 – Test A: Cold
  • IEC 60068-2-2 – Test B: Dry Heat
  • IEC 60068-2-14 – Test N: Temperature Change
  • ISO 16750-4 – Road Vehicles – Climatic Loads
  • UL 1642 – Lithium Battery Safety Testing
  • UN 38.3 – Lithium Battery Transport Tests (Thermal Test Section)
  • GB/T 2423.1 & GB/T 2423.2 – Environmental Testing for Electrical Products
Technical Specifications
Test Items Parameters
Model HJ-EMTC-011
Temperature Range -50℃~+150℃
Temperature Fluctuation ≤±0.5℃
Temperature Uniformity ≤±2℃ (9-point test)
Temperature Deviation ≤±2℃
Resolution Accuracy 0.01℃
Heating Rate From -40℃ to +140℃ 3℃/min Linear (No load, ambient temperature +25℃)
Cooling Rate From 80℃ to -40℃ 1℃/min Linear (No load, ambient temperature +25℃)
Applications
  • Lithium-ion battery thermal testing
  • EV battery module and pack safety validation
  • Automotive electronic components testing
  • Aerospace and rail transit components
  • Industrial materials aging and reliability testing
  • Research institutes and third-party laboratories
Product Images
Double-Layer Explosion-Proof High and Low Temperature Environmental Test Chamber for Battery & Automotive Safety Testing 0 Double-Layer Explosion-Proof High and Low Temperature Environmental Test Chamber for Battery & Automotive Safety Testing 1
Frequently Asked Questions
Is this chamber suitable for lithium battery safety testing?
Yes. The double-layer explosion-proof structure is specifically designed for high-risk battery thermal tests.
Can the temperature range be customized?
Absolutely. HeJin offers customized temperature ranges and chamber sizes.
Does it support long-term cycling tests?
Yes. The chamber is designed for continuous and long-duration thermal cycling.
What industries commonly use this chamber?
Automotive, EV battery manufacturing, energy storage, electronics, and research laboratories.
Are international standards supported?
The design references IEC, ISO, UL, UN, and GB standards.
